Mass Customization Research from CSAIL at MIT
While Generative AI has been touted as a potentially transformative force in 3D modeling, practical applications lag well behind the hype.
The paper "Style2Fab: Functionality-Aware Segmentation for Fabricating Personalized 3D Models with Generative AI" by researchers at MIT CSAIL offers an approach to a small subset of 3D modeling that may be relevant for consumer facing applications of ‘mass customization’, in maintaining the functionality of 3D models during aesthetic modifications.

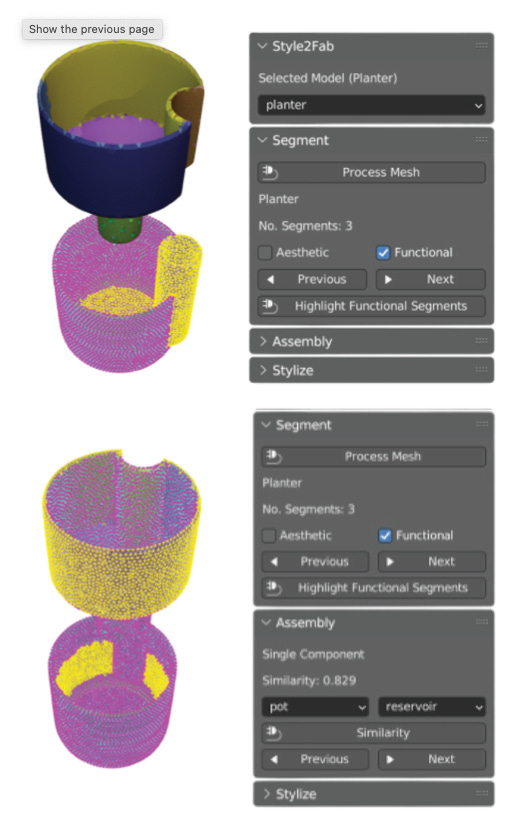

Style2Fab Blender Plugin
Style2FAB is an interactive academic Blender Plugin designed to assist users in modifying the aesthetic elements of 3D models without affecting their functional components. The tool employs a semi-automatic classification method that segments 3D models into functional and aesthetic elements based on a taxonomy developed by the authors. This classification serves as the foundation for the tool, which then uses generative AI algorithms to facilitate the modification process.
The aim is to provide a methodological approach to the challenge of maintaining the functionality of 3D models during aesthetic modifications by consumers without CAD skills, or to accelerate experimentation by experts.

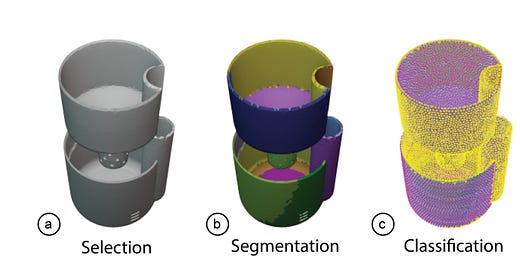

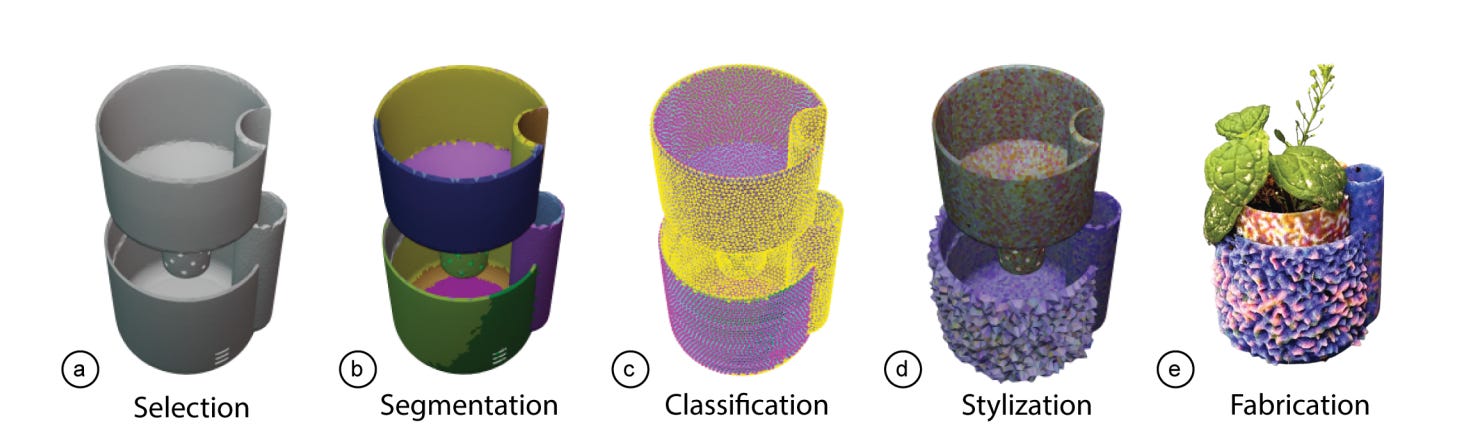

To stylize a model with Style2Fab, the user must:
(A) Select a suitable 3D model
(B) Preprocess their model for segmentation and stylization,
(C) Segment and classify the functionality of each segment,
(D) Selectively apply a style to segments based on functionality, and
(E) Produce and review their stylized model.
How Style2Fab Works
The Style2Fab tool employs a semi-automatic classification method to analyze 3D models. It segments the models into functional and aesthetic elements based on a taxonomy developed by the authors.
This taxonomy classifies geometric components of a 3D mesh into three categories: aesthetic, internally-functional, and externally-functional. The classification is designed to be semi-automatic, meaning it leverages both computational algorithms and user input to achieve accurate segmentation.
Once the model is segmented, Style2Fab uses cosmetic generative AI algorithms to assist users in modifying the aesthetic components without affecting the functional elements. The tool aims to ensure that any modifications made to the model's aesthetics do not compromise its functional integrity.
It's worth noting that while the tool offers a promising approach, the paper does not delve into the computational costs associated with the segmentation process, nor does it address the scalability of the method for more complex 3D models. These are areas that would require further research and evaluation.
How is AI Used
Once the model is segmented into functional and aesthetic components through the tool's semi-automatic classification method, the generative AI comes into play. It facilitates the process of altering the aesthetic components in a way that does not compromise the functional elements of the model.
The AI algorithms essentially act as a sophisticated layer of computational logic that understands the segmented taxonomy of the 3D model.
In the Style2Fab framework, Text2Mesh is employed to stylize 3D models based on textual prompts provided by the user.
Text2Mesh utilizes a neural network architecture that leverages the CLIP (Contrastive Language–Image Pretraining) representation to interpret the text prompts.
This allows the input of the user's aesthetic intent, which is then translated into modifications to the 3D model.
By integrating Text2Mesh, Style2Fab provides a more user-friendly interface for aesthetic customization, enabling users to articulate their design preferences in natural language.
“Text2Mesh makes small manipulations in both the color channel and vertex displacement along the vertex normal for each of the vertices in order to make it look more similar to the text prompt. This allows the system to generate a stylized 3D model that reflects the user’s desired style.”

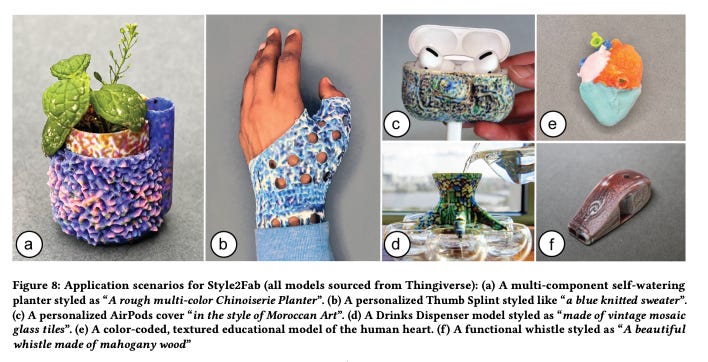

While customization may or may not in reality be a desired feature for consumers, designers and brands typically wish to retain control over certain aspects of their creations to maintain brand integrity and functional reliability.
Style2Fab's functionality-aware segmentation could serve as an aid for this purpose for designers, more than consumers.
It could help designers to define which areas of a 3D model are customizable, effectively setting boundaries for consumer interaction without compromising functionality, or relinquishing all control.
Meanwhile, the integration of Text2Mesh and language models could enable consumers to articulate their aesthetic preferences in natural language, streamlining the customization process, potentially with guardrails to keep the object ‘on brand’.
This dual-layered approach could strike a balance between consumer customization and designer control, although the scalability and computational efficiency of such a system would require further investigation.
